Suitable for many industrial, educational and vocational shop uses.
Precision turned carbon steel rolls that are ground and polished.
Large roll adjusting screws facilitate lifting upper roll for easy material removal.

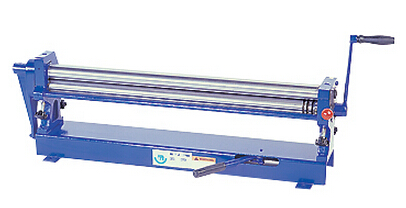

| Model NO. | RM2236 |
| Capacity(mild steel) | 0.7 mm（22 Gage) |
| Max Forming Length | 915 mm(36") |
| Number & Dia of Rolls | 50.8 mm(3&2") |
| Min Forming Radius | 25.4 mm(1") |
| Wire Grooves | 4、5、6、8 mm (3/16"、1/4"、5/16") |
| Net Weight | 96 kgs(212 lbs) |
| Gross Weight | 116 kgs(256 lbs) |
| Dimensions | 1570 ×350 ×350(62"× 14"× 14") |
| Packing Size | 1530 ×490 ×520(60" ×20" ×21") |
