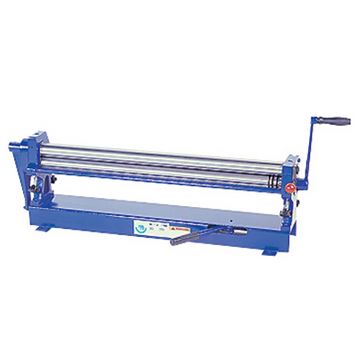

Suitable for many industrial, educational and vocational shop uses.
Precision turned carbon steel rolls that are ground and polished.
Large roll adjusting screws facilitate lifting upper roll for easy material removal.
| Model NO. | RM2024 |
| Capacity(mild steel) | 1 mm（20 Gage) |
| Max Forming Length | 610 mm(24") |
| Number & Dia of Rolls | 50.8 mm(3&2") |
| Min Forming Radius | 25.4 mm(1") |
| Wire Grooves | 4、5、6、8 mm (3/16"、1/4"、5/16") |
| Net Weight | 78 kgs(172 lbs) |
| Gross Weight | 98 kgs(242 lbs) |
| Dimensions | 1260 ×350 ×350(50"× 14"× 14") |
| Packing Size | 1220 ×490 ×520(48" ×20" ×21") |
