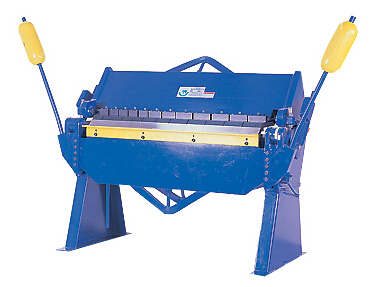

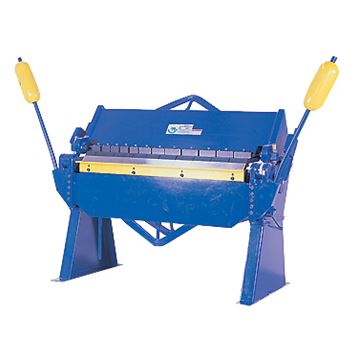

Wide assortment of finger widths allow greater versatility in the shop.
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and druability.
Both the bed and apron are bored in line to assure the utmost accuracy.
EBP-1696F Total of 22 assorted size section fingers
(3"x5)+(4"x6)+(5"x9)+(6"x2) = 22pcs (96")
(76.2m/mx5)+(101.6m/mx6)+(127m/mx9)+(152.4m/mx2)= 22pcs (2438m/m)
| Model | BM-1248 |
| Capacity(mild steel) | 2.6mm (22Gage) |
| Max Blending Length | 1220mm(48") |
| Max Box Depth | 100mm(4") |
| Max lift of beam | 38mm(3/2") |
| Beam Adjustment | 22mm(7/8") |
| Finger Nose Angle | 45o |
| Finger Nose Radius | 0.8mm(1/32") |
| Net Weight | 1016KGS(2230LBS) |
| Gross Weight | 1100KS(2420LBS) |
| Dimensions | 1770×850×1320mm(70"×33"×52") |
| Packing Size | 1850×900×1650mm(73"×36"×65") |
