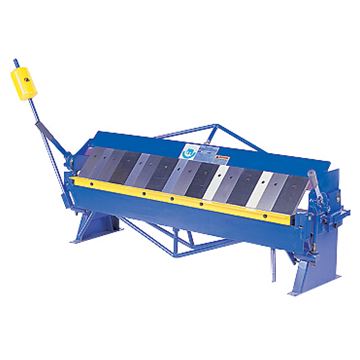

Incorporates all the features of our standard hand brakes but with greater range of applications.
Designed to be easy to operate.
Sectioned fingers are easily removed for box bending and special forming operations.
With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake.
Total of 16 assorted size section fingers
(2"x5)+(3"x6)+(4"x5) = 16 pcs(48")
(50.8m/mx5)+(76.2m/mx6)+(101.6m/mx5) = 16 pcs (1225m/m)
| Model | BM-1648 |
| Capacity(mild steel) | 1.6mm (16Gage) |
| Max Blending Length | 1220mm(48") |
| Max Box Depth | 100mm(4") |
| Max lift of beam | 32mm(5/4") |
| Beam Adjustment | 16mm(5/8") |
| Finger Nose Angle | 45o |
| Finger Nose Radius | 0.8mm(1/32") |
| Net Weight | 195KGS(430LBS) |
| Gross Weight | 230KS(506LBS) |
| Dimensions | 1500×500×650mm(61"×20"×26") |
| Packing Size | 1640×580×780mm(65"×23"×31") |
ES- 48 (Stand for BM-1648B)
