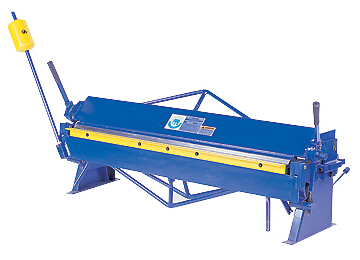

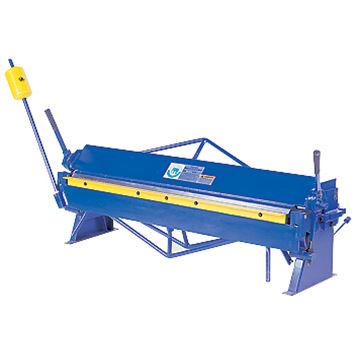

Simplicity of design, improved truss rod construction and a minimum number of moving parts make the Elephant hand brake easy to operate.
Streamline designed for fast accurate bending even for the inexperienced workman.
All body sections are welded steel plate, with heavy truss rods, braces disigned to give the greatest strength, perfect alignment and long work life.
Quick clamping adjustment is achieved by means of a simple link arrangement.
Both the bed and apron are bored in line to assure the utmost in accuracy.
The wide range of adjustment permits clamping of form and nose bars for special shapes.
| Model | BM-2248 |
| Capacity(mild steel) | 0.7mm (22Gage) |
| Max Blending Length | 1220mm(48") |
| Max lift of beam | 22mm(7/8") |
| Beam Adjustment | 3mm(1/8") |
| Net Weight | 86KGS(190LBS) |
| Gross Weight | 105KS(231LBS) |
| Dimensions | 1500×330×600mm(59"×13"×24") |
| Packing Size | 1620×440×750mm(64"×18"×30") |

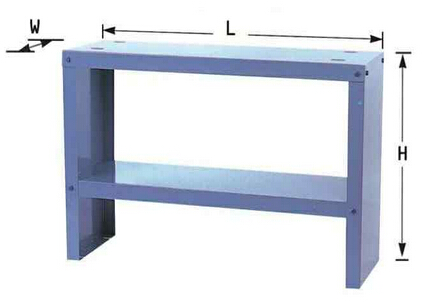

ES- 48 (Stand for BM-2248B)
