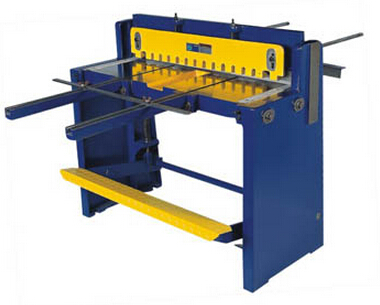

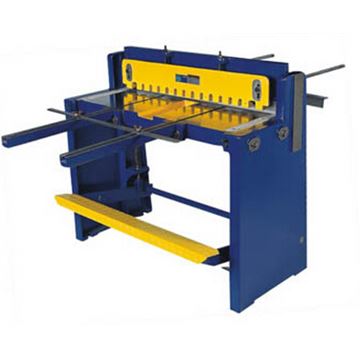

Heavy cast iron frame, surface ground bed, positive pedal stop.
Ideal for precision shearing of mild steel up to 16 gauge.
Can also be used on aluminum, copper, brass, zinc, plastic and lead.
High carbon high chrome steel blade.
2-way blade configuration provides twice the cutting life.
Upper blade is 2-way, bottom blade is 1-way.
2ﾟangle cutting edge, 1ﾟface relief.
| Model No. | GM1637 |
| Capacity (mild steel) | 1.6mm(16 Gage) |
| Shearing Length Capacity | 940mm(37") |
| Range Back Gauge | 762mm(30") |
| Rang Front Gauge | 330mm(13") |
| Net Weight | 370kgs(814 lbs) |
| Gross Weight | 400kgs(880 lbs) |
| Dimensions | 1160×1880×1070mm(46"×74"×42") |
| Packing Size | 1320×860×1240mm(52"×34"×49") |
