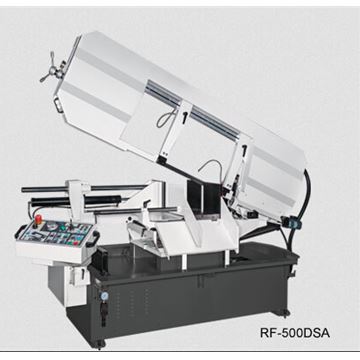

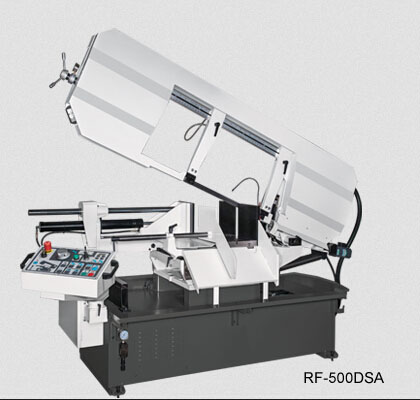

BS500DSA / BS500DSAH-Auto Band Saw ART:8204038
2 Way Swivel, Variable Speed Semi Auto Saw Bow Lifting & Hydrauilc Vise
  • Dual Swivel cutting angle from 0~+-60 degress. Can  fix the position every 5 degrees.

  • New type one-piece stand cooperated with swivel  control box for very convenient operation.

  • High efficiency gear drive system cooperated to  variable step pulley provides fast changing speed. Also with LED readout for  clear speed figure.

  • Suitable for bundle cutting on large tube and pipe.

  • Heavy duty one-piece stand with swing control box for  better operation.

  • Enlarged hydraulic cylinder and buffer spring enhance  the cutting stability.

  • hydraulic vise system can assist to clamp different  size of workpiece properly.

  • Electric shut-off system and alarm make sure high  safety.

  • Designed Tru-Lock Vise provides fast clamping.

  • Cleaning hose and nozzle assist in washing chips  away

  • Easy access chip tray allows quick cleanup

  • Self-propelled blade brush extends the blade  life

  • With Bi-metal blade, chip brush and length stop set

  • Optional selection includes laser indicator and hydraulic  tension meter

  • Recommended 2 meter roller table or stock stand.

CUTTING CAPACITY
508mm (20")
660 x 508mm (26" x 20")
508 x 508mm (20" x 20")
±45º508mm (20")
590 x 260mm (231/4" x 10 1/4")
508 x 508mm (20" x 20")
±60º380mm (15")
460 x 360mm (18" x 14")
380 x 380mm (15" x 15")



ItemUnitBS 500DSABS 500DSAH
Main MotorHPMain Motor / 5HP
Hydraulic Motor /      2HP
     Coolant Pump / 1/8HP
SpeedMt/min60HZ / 32~96
     50HZ / 26~80
Ft/min60HZ / 106~317
     50HZ / 85~264
Saw Blademm (WxTxL)41 x 1.3 x 5890
inch (WxTxL)1.61" x 0.05" x 231.88"
Machine Dimensionsmm (LxWxH)3000 x 1270 x 1730
inch (LxWxH)118" x 50" x 68"
WeightNW/GW1590 / 1800 kgs1650 / 1860 kgs
Packing Dimensionsmm (LxWxH)2930 x 1140 x 1981
inch (LxWxH)115.3" x 44.8" x 78"
No.of Machines Packed      in 20" container20'4 sets/SKD
40'-
