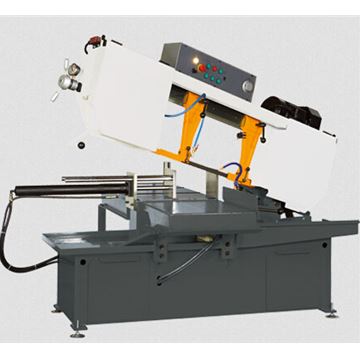

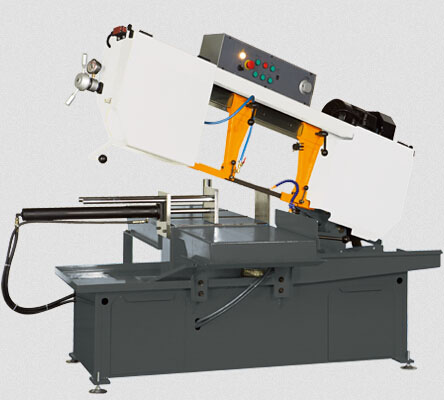

Larger working platform and rear roller table enhance working convenience.
Deluxe stand stabilizes the machine body.
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed.
Tungsten blade guide helps to maintain the cutting stability and extend the blade life.
Enlarged hydraulic cylinder and buffer spring enhance the cutting stability.
Designed Tru-Lock Vise provides fast clamping.
Cutting angle from 0 to -60 degrees without moving stock.
Cleaning hose and nozzle assist in washing chips away
Hydraulic saw arm lifting system can lift the saw bow up and down with preferred speed. (BS20SA/BS20SAA)
hydraulic vise system can assist to clamp different size of workpiece properly. (BS20SAA)
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Optional selection includes laser indicator and hydraulic tension meter
| CUTTING CAPACITY | ||
| 0° |  | 330mm (13") |
 | 330 x 457mm (13" x 18" | |
| -45º | | 280mm (11") |
| 330 x 280mm (13" x 11") | |
| -60º | | 175mm(6 7/8”) |
| 250 x 175mm (10" x 67/8") | |
| Item | Unit | BS20S | BS20SA | BS20SAA |
| Main Motor | HP | 3 | ||
| Speed | Mt/min | 60HZ / 30~80 | ||
| 50HZ / 25~67 | ||||
| Ft/min | 60HZ / 98~262 | |||
| 50HZ / 82~219 | ||||
| Saw Blade | mm (WxTxL) | 27 x 0.9 x 4220 | ||
| inch (WxTxL) | 1.06 x 0.035 x 166.1 | |||
| Machine Dimensions | mm (LxWxH) | 2075 x 1910 x 1350 | ||
| inch (LxWxH) | 81.7 x 75.1 x 53.1 | |||
| Weight | NW/GW | 640 / 710 kgs | 660 / 730 kgs | |
| Packing Dimensions | mm (LxWxH) | 2286 x 800 x 1524 | ||
| inch (LxWxH) | 90 x 31.5 x 60 | |||
| No.of Machines Packed in 20" container | 20' | 7 sets | ||
