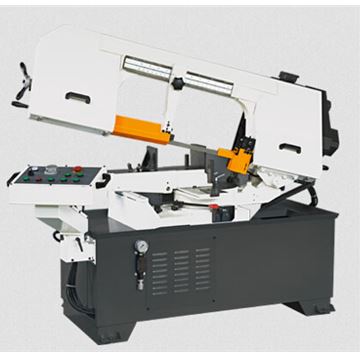

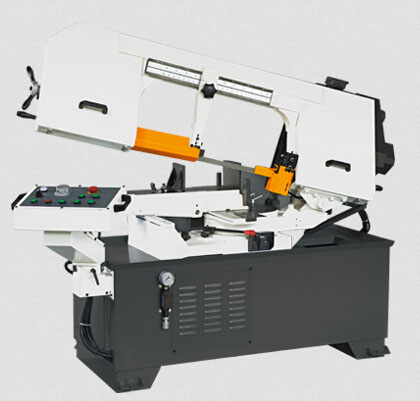

New type one-piece stand cooperated with swivel control box for very convenient operation.
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed.
Enlarged hydraulic cylinder and buffer spring enhance the cutting stability.
Tungsten blade guide helps to maintain the cutting stability and extend the blade life.
Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock.
Cleaning hose and nozzle assist in washing chips away
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Optional selection includes laser indicator and hydraulic tension meter
Professional semi-auto hydraulic system can make a perfect cutting cycle with lifting the saw bow to certain height and cutting down. (BS 330NA / BS330NAA)
Hydraulic vise system also installed for clamping different size workpiece. (BS 330NAA)
| CUTTING CAPACITY | ||
| 0° |  | 330 mm (13") |
 | 127X458mm (5" x 18") | |
 | 305 x 305mm (12" x 12") | |
| ±45º | | 305 mm(12") |
| 229 x 305mm (9" x 12") | |
| 280 x 280mm (11" x 11") | |
| 60° | | 204mm(8") |
| 178 x 204mm (7" x 8") | |
| 204 x 204mm (8" x 8") | |
| tem | Unit | BS 330N | BS 330NA | BS 330NAA |
| Main Motor | HP | 2 | ||
| Speed | Mt/min | 60HZ / 30~120 | ||
| 50HZ / 25~100 | ||||
| Ft/min | 60HZ / 98~393 | |||
| 50HZ / 81~327 | ||||
| Saw Blade | mm (WxTxL) | 27x 0.9 x 3810 | ||
| inch (WxTxL) | 1.06 x 0.035 x 150 | |||
| Machine Dimensions | mm (LxWxH) | 2030 x 1315 x 1425 | ||
| inch (LxWxH) | 80 x 51.7 x 56.1 | |||
| Weight | NW/GW | 590 / 630 kgs | 610 / 650 kgs | |
| Packing Dimensions | mm (LxWxH) | 2120 x 940 x 1515 | ||
| inch (LxWxH) | 83.5 x 37 x 60 | |||
| No.of Machines Packed in 20" container | 20' | 6 sets | ||
