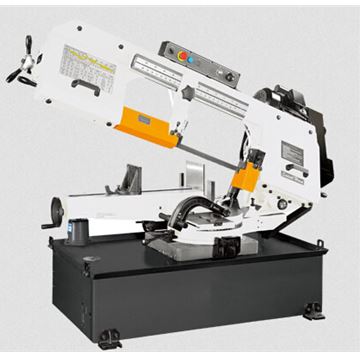

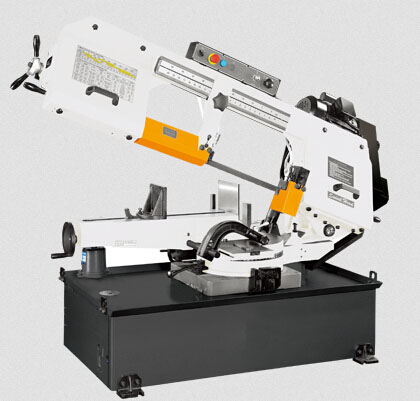

Casting base and blade wheel jointed with heavy gauge steel saw bow performs excellently with economic cost.
The chip tray stand jointed with saw base. It can swivel with saw bow and no need to move workpiece.
Fully adjustable hydraulic downfeed controls the rate of descent
Dual swivel cutting angle from 0 to -45 and +60 degrees without moving stock.
Control panel installed on top of saw bow for more convenient operation.
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed.
Bearing carbide guide enhances cutting stability and extends the blade life.
Stand jointed with water pan for collecting chip and water
Cleaning hose and nozzle assist in washing chips away
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Optional selection includes laser indicator and hydraulic tension meter
| CUTTING CAPACITY | ||
| 0° |  | 254 mm (10") |
 | 76 x 458 mm ( 3" x 18") | |
 | 254 x 254 mm (10" x 10") | |
| ±45° | | 254 mm(10") |
| 254 x 280 mm( 10" x 11") | |
| 254 x 254 mm( 10" x 10") | |
| 60° | | 204 mm (8") |
| 127 x 204 mm ( 5" x 8") | |
| 178 x 178 mm (7" x 7") | |
| Item | Unit | BS 250S |
| Main Motor | HP | 2 |
| Speed | Mt/min | 60HZ / 30~120 |
| 50HZ / 25~100 | ||
| Ft/min | 60HZ / 98~393 | |
| 50HZ / 81~327 | ||
| Saw Blade | mm (WxTxL) | 27 x 0.9 x 3352 |
| inch (WxTxL) | 1.06 x 0.035 x 132 | |
| Machine Dimensions | mm (LxWxH) | 1840 x 700 x 1080 |
| inch (LxWxH) | 72.4 x 27.5 x 42.5 | |
| Weight | NW/GW | 420 / 460 kgs |
| Packing Dimensions | mm (LxWxH) | 2000 x 900 x 1130 |
| inch (LxWxH) | 79 x 35.5 x 44.5 | |
| No.of Machines Packed in 20" container | 20'40' | 12 sets |
