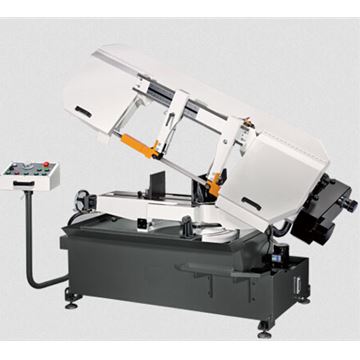

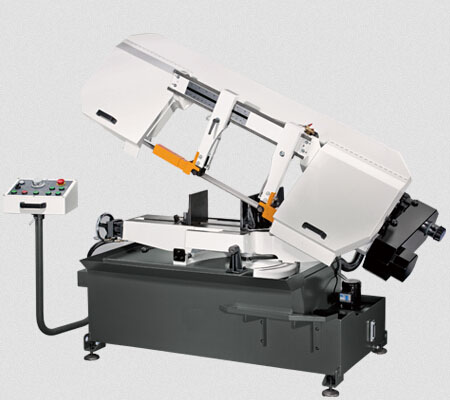

Available for cutting angle from 0~45 degrees.

Provides max. cutting at 330 mm dia. Maximum width 530 mm

Work piece stay still when saw bow and work table swing the angle, saving big working space.

Swivel arm control panel provide easy operation in different position.

T-Slot design of swivel base provide firm stability of swivel result.

Drive wheel fixed by enlarging spindle nut method, increase the stability and life.

Machine Base, Blade wheels are made of Casting, ensure the rigidity and stability of strength.

Heavy duty gear box with variable speed system provide different cutting speed.

Semi-Auto with hydraulic pump and magnetic switch to control saw bow up down movement.

Front open style blade cover provide safety protection.

Carbide guide with bearing increase the stability, and prolong blade life, reduce comsumption cost.

Semi-Auto hydraulic vise provide 15 mm travel for auto clamping

Adjustable blade guide arm to increase work piece precision and saw blade life.

Lead screw and rack vise system provide quick and firm clamping.

Hydraulic brake down feed dial on control panel, easy to operate.

Suitable for cutting tubes, profiles, solids bars, ferrous and nonferrous materials.

Saw bow lifting height setting by sliding knob, easy to operate.

Equipped with coolant system for wet cutting. Separated coolant switch.

Magnetic switch with power off, easy operation and safety.

With large scale in front, for easy setting counter blade guide position.

Wide chip tray with filter net  for easy collecting chips and cleaning.

With bi-metal blade, chip brush and length stop set.

Optional laser indicator for cutting line indication.

Optional hydraulic tension meter to maintain stable tension and prolong the blade life.
