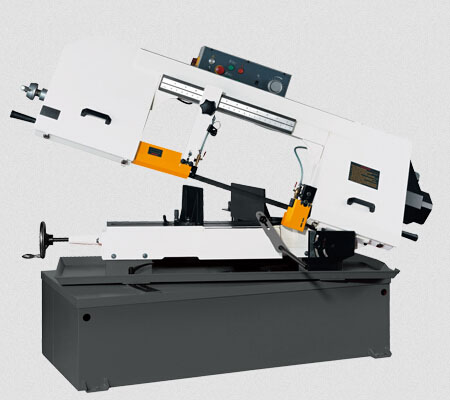

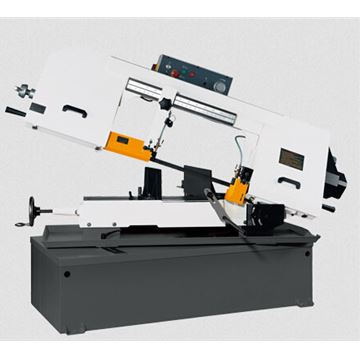

Casting base and blade wheel jointed with heavy gauge steel saw bow performs excellently with economic cost.
The chip tray stand jointed with saw base. It can swivel with saw bow and no need to move workpiece.
Fully adjustable hydraulic downfeed controls the rate of descent
Control panel installed on top of saw bow for more convenient operation.
High efficiency gear drive system cooperated to variable step pulley provides fast changing speed.
Tungsten blade guide enhances cutting stability and extends the blade life.
Cutting angle from 0 degree to 45 degree without moving stock.
Stand jointed with water pan for collecting chip and water.
Cleaning hose and nozzle assist in washing chips away
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Optional selection includes laser indicator and hydraulic tension meter
| CUTTING CAPACITY | ||
| 0° |  | 330 (13") |
 | 127 x 483 (5" x 19") | |
 | 305 x 305 (12" x 12") | |
| 45° | | 305 (12") |
| 229 x 305 (9" x 12") | |
| 280 x 280 (11" x 11") | |
| tem | Unit | BS 335SRV | BS 335SRVA |
| Main Motor | HP | 3 | 3 |
| Speed | Mt/min | 60HZ / 36~96 | 60HZ / 36~96 |
| 50HZ / 30~80 | 50HZ / 30~80 | ||
| Ft/min | 60HZ / 118~315 | 60HZ / 118~315 | |
| 50HZ / 98~262 | 50HZ / 98~262 | ||
| Saw Blade | mm (WxTxL) | 27 x 0.9 x 3810 | 27 x 0.9 x 3810 |
| inch (WxTxL) | 1.06 x 0.035 x 150 | 1.06 x 0.035 x 150 | |
| Machine Dimensions | mm (LxWxH) | 2030 x 750 x 1280 | 2030 x 750 x 1280 |
| inch (LxWxH) | 83 x 31 x 50 | 83 x 31 x 50 | |
| Weight | NW/GW | 450 / 490 kgs | 450 / 490 kgs |
| Packing Dimensions | mm (LxWxH) | 2085 x 825 x 1420 | 2085 x 825 x 1420 |
| inch (LxWxH) | 82 x 32.5 x 56 | 82 x 32.5 x 56 | |
| No.of Machines Packed in 20" container | 20' | 7 sets | 7 sets |
