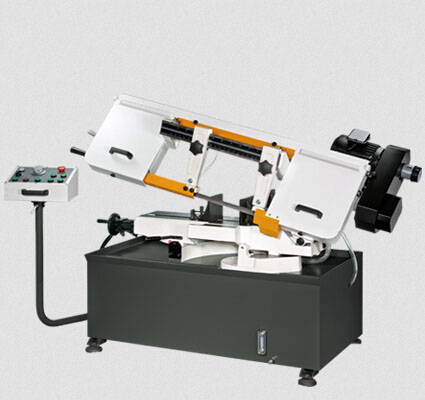

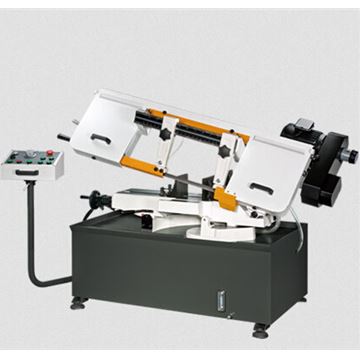

Provides max. cutting at 254 mm dia. Maximum width 400 mm

Swivel arm control panel provide easy operation in different position.

Work piece stay still when saw bow and work table swing the angle, saving big working space.

T-Slot design of swivel base provide firm stability of swivel result.

Machine Base, Blade wheels are made of Casting, ensure the rigidity and stability of strength

Heavy duty gear box with variable speed system provide different cutting speed.

Semi-Auto with hydraulic pump and magnetic switch to control saw bow up down movement

Semi-Auto hydraulic vise provide 15 mm travel for auto clamping.

Hydraulic brake down feed dial on control panel, easy to operate.

Saw bow lifting height setting by sliding knob, easy to operate.

With large scale in front, for easy setting counter blade guide position.

Front open style blade cover provide safety protection.

Carbide guide with bearing increase the stability, and prolong blade life, reduce comsumption cost.

Adjustable blade guide arm to increase work piece precision and saw blade life.

Clamping vise is available for angle cutting from 0 degree to 45 degree.

Suitable for cutting tubes, profiles, solids bars, ferrous and nonferrous materials .

Magnetic switch with power off, easy operation and safety.

Equipped with coolant system for wet cutting. Separated coolant switch.

Wide chip tray with filter net  for easy collecting chips and cleaning.

With bi-metal blade, chip brush and length stop set.

Optional laser indicator for cutting line indication.

Optional hydraulic tension meter to maintain stable tension and prolong the blade life.
