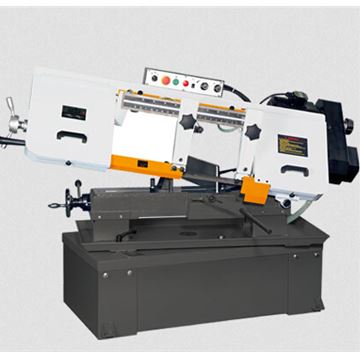

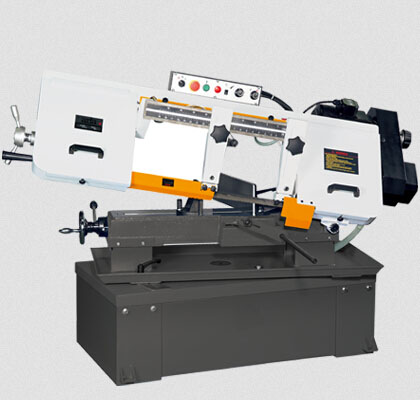

BS1018R / BS1018RV - Heavy Duty /Semi-Auto Band Saw ART:8204026
10" METAL CUTTING BAND SAW


  • Provides max. cutting at 254 mm dia. Maximum width 400 mm

  • Work piece stay still when saw bow and work table swing the angle, saving big working space.

  • T-Slot design of swivel base provide firm stability of swivel result.

  • Blade wheels are made of Casting, ensure the rigidity and stability of strength.

  • Heavy duty gear box with 4 steps pulley change provide different cutting speed. (RF-1018R)

  • Heavy duty gear box with variable speed system provide different cutting speed. (RF-1018RV)

  • Hydraulic brake down feed dial on control panel, easy to operate.

  • With large scale in front, for easy setting counter blade guide position.

  • Front open style blade cover provide safety protection.

  • Carbide guide with bearing increase the stability, and prolong blade life, reduce comsumption cost

  • Tru-lock vise provides firm clamping.

  • Adjustable blade guide arm to increase work piece precision and saw blade life.

  • Clamping vise is available for angle cutting from 0 degree to 45 degree.

  • Suitable for cutting tubes, profiles, solids bars, ferrous and nonferrous materials

  • Magnetic switch with power off, easy operation and safety.

  • Equipped with coolant system for wet cutting. Separated coolant switch.

  • Wide chip tray with filter net  for easy collecting chips and cleaning.

  • Optional laser indicator for cutting line indication.

  • Optional hydraulic tension meter to maintain stable tension and prolong the blade life.


CUTTING CAPACITY
254 mm (10")
254 x 400 mm ( 10" x 15.1")
254 x 385 mm (10" x 15.1")
45°200 mm(7.8")
200 x 200 mm( 7.8" x 7.8")
200 x 200 mm( 7.8" x 7.8")



ItemUnitBS1018RBS1018RV
Main MotorHP2 (1.5kw)(3-Phase)
SpeedMt/min60HZ
     30, 60, 88, 115
60HZ
30~110

Ft/min60HZ
     114, 196, 288, 377
60HZ
98~360

Saw Blademm (WxTxL) 27 x 0.9 x 3090
inch (WxTxL)1.06 x 0.045 x 121.6
Machine Dimensionsmm (LxWxH) 1800 x 820 x 12802075 x 820 x 1280
inch (LxWxH)70.9 x 32.3 x 50.481.7 x 32.3 x 50.4
WeightNW/GW 390 / 430 kgs390 / 430 kgs
Packing Dimensionsmm (LxWxH)1730 x 830 x 1160
inch (LxWxH)68.1 x 32.7 x 45.7
No.of Machines Packed in 20" container20'7 (by SKD 14) sets
40'14 (by SKD 28) sets
