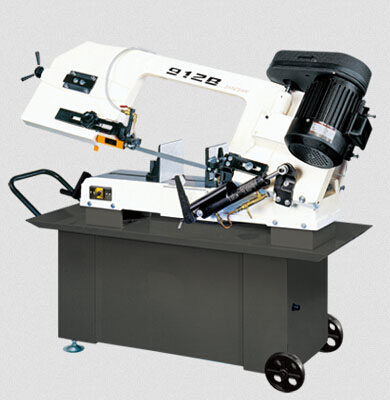

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety..
4 steps belt speeds allows different cutting speed.
Bearing carbide guide enhances cutting stability and extends the blade life.
Cutting angle from 0 degree to 45 degree.
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Wheel kit for convenient moving to various work stations
UTTING CAPACITY | ||
0° | ![]() | 229 mm ( 9" ) |
![]() | 178 x 305 mm ( 7" x 12") | |
45° | ![]() | 150 mm ( 6 " ) |
![]() | 127 x 150 mm ( 5" x 6" ) |
Item | Unit | BS912B |
Main Motor | HP | 1 |
Speed | Mt/min | 60HZ / 32-60-88-115 |
50HZ / 26-50-73-95 | ||
Ft/min | 60HZ / 105-196-288-377 | |
50HZ / 85-164-240-312 | ||
Saw Blade | mm (WxTxL) | 27 x 0.9 x 2655 |
inch (WxTxL) | 1.06 x 0.035 x 104.5 | |
Machine Dimensions | mm (LxWxH) | 1380 x 460 x 1050 |
inch (LxWxH) | 54.3 x 18 x 41.3 | |
Weight | NW/GW | 160 / 185 kgs |
Packing Dimensions | mm (LxWxH) | 1140 x 510 x 1125 |
inch (LxWxH) | 57 x 20 x 44.5 | |
No.of Machines Packed in 20" container | 20' | 30 sets |
