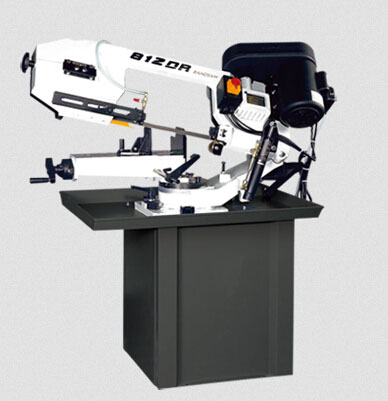

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
4 steps belt speeds allows different cutting speed.
Dual swivel allows cutting angle from 0 degree to 45 degree.
Bearing carbide guide enhances cutting stability and extends the blade life.
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With standard blade, chip brush and length stop set
| CUTTING CAPACITY | ||
| 0° |  | 205 mm ( 8" ) |
 | 215 x 205 mm ( 8 1/2" x 8" ) | |
| ±45° | | 153mm ( 6" ) |
| 153 x 115 ( 6" x 4 1/2" ) | |
| Item | Unit | BS812DR |
| Main Motor | HP | 3/4 |
| Speed | Mt/min | 60HZ / 29-50-75-100 |
| 50HZ / 24-41-61-82 | ||
| Ft/min | 60HZ / 98-164-246-328 | |
| 50HZ / 81-135-203-270 | ||
| Saw Blade | mm (WxTxL) | 20 x 0.8 x 2362 |
| inch (WxTxL) | 0.8 x 0.0315 x 93 | |
| Machine Dimensions | mm (LxWxH) | 1240 x 650 x 1200 |
| inch (LxWxH) | 49 x 24.4 x 44.70 | |
| Weight | NW/GW | 180 / 200 kgs |
| Packing Dimensions | mm (LxWxH) | 1320 x 749 x 760 |
| inch (LxWxH) | 52 x 29 x 30 | |
| No.of Machines Packed in 20" container | 20' | 36 sets / SKD |
