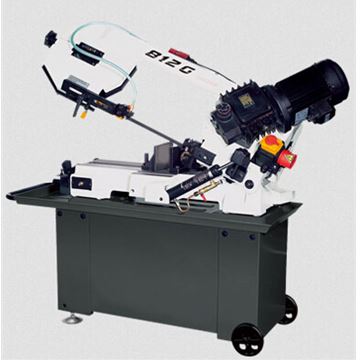

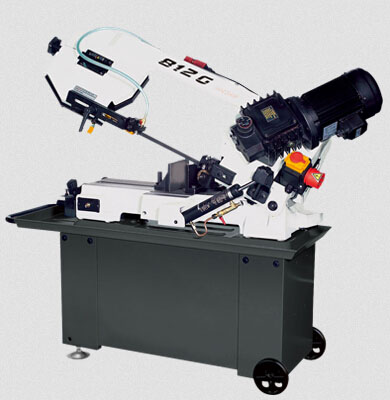

BS812G - Light Duty Band Saw ART:8204016
8" x 12" Geared Drive
  • Casting structure assures machanical strength.

  • Fully adjustable hydraulic downfeed controls the rate of descent

  • Full blade cover provides more safety.

  • Gear drive system provides speed changing when saw blade is in unload running.

  • Cutting angle from 0 degree to 45 degree.

  • Bearing carbide guide enhances cutting stability and extends the blade life.

  • Stand jointed with water pan for collecting chip and water.

  • Coolant system for wet cutting.

  • With standard blade, chip brush and length stop set

  • Wheel kit for convenient moving to various work stations

CUTTING CAPACITY
200 mm (8")
178 x 305 mm (7"x12")
200  x 200 mm (8"x8")
45°127 mm (5")
120 x 125 mm (4 3/4"x4 7/8")
120 x 120mm (4 3/4"x4 3/4")
ItemUnitBS812G
Main MotorHP1
SpeedMt/min60HZ / 41-60-78
50HZ / 34-50-65
Ft/min60HZ / 135-197-256
50HZ / 112-164-213
Saw Blademm (WxTxL)20 x 0.8 x 2362
inch (WxTxL)0.8 x 0.0315 x 93
Machine Dimensionsmm (LxWxH)1235 x 430 x 1100
inch (LxWxH)49 x 17 x 43
WeightNW/GW195 / 215 kgs
Packing Dimensionsmm (LxWxH)1310 x 515 x 1150
inch (LxWxH)51.5 x 20 x 45.3
No.of Machines Packed in 20" container20'30 sets
