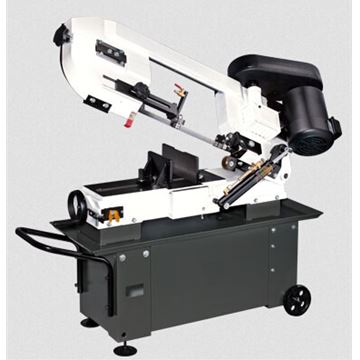

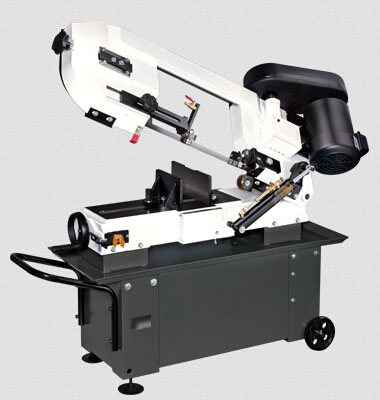

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
4 steps belt speeds allows different cutting speed.
Bearing carbide guide enhances cutting stability and extends the blade life.
Cutting angle from 0 degree to 45 degree.
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With standard blade, chip brush and length stop set
Wheel kit for convenient moving to various work stations
| CUTTING CAPACITY | ||
| 0° |  | 200 mm (8") |
 | 178 x 305 mm (7"x12") | |
 | 200 x 200 mm (8"x8") | |
| 45° | | 127 mm (5") |
| 120 x 125 mm (4 3/4"x4 7/8") | |
| 120 x 120mm (4 3/4"x4 3/4") | |
| Item | Unit | BS 812N |
| Main or | HP | 3/4 |
| Speed | Mt/min | 60HZ / 29-50-75-100 |
| 50HZ / 24-41-61-82 | ||
| Ft/min | 60HZ / 98-164-246-328 | |
| 50HZ / 81-134-203-270 | ||
| Saw Blade | mm (WxTxL) | 20 x 0.8 x 2362 W/Carbon |
| inch (WxTxL) | 0.8 x 0.0315 x 93 | |
| Machine Dimensions | mm (LxWxH) | 1235 x 430 x 1100 |
| inch (LxWxH) | 49 x 17 x 43 | |
| Weight | NW/GW | 180 / 200 kgs |
| Packing Dimensions | mm (LxWxH) | 1305 x 485 x 1143 |
| inch (LxWxH) | 51.5 x 19 x 45 | |
| No.of Machines Packed in 20" container | 20' | 40 sets |
