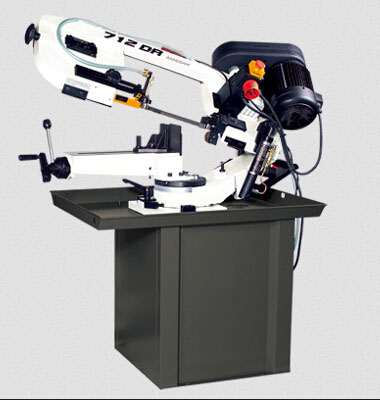

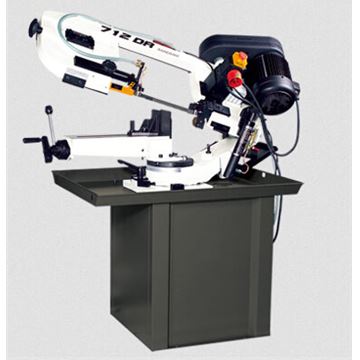

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
4 steps belt speeds allows different cutting speed.
Dual swivel allows cutting angle from 0 degree to 45 degree.
Adjustable blade guide for high accuracy and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With standard blade, chip brush and length stop set
| CUTTING CAPACITY | ||
| 0° |  | 178 mm ( 7" ) |
 | 178 x 210 mm ( 7" x 8 1/4" ) | |
| ±45° | | 127mm ( 5" ) |
| 85 x 140 mm ( 3 1/3" x 5 1/2" ) | |
| Item | Unit | BS 712 DR |
| Main Motor | HP | 1 |
| Speed | Mt/min | 60HZ / 29-50-75-100 |
| 50HZ / 24-41-61-82 | ||
| Ft/min | 60HZ / 98-164-246-328 | |
| 50HZ / 81-135-203-270 | ||
| Saw Blade | mm (WxTxL) | 20 x 0.8 x 2362 W/Bi-Metal Blade |
| inch (WxTxL) | 0.8 x 0.0315 x 93 | |
| Machine Dimensions | mm (LxWxH) | 1240 x 620 x 1135 |
| inch (LxWxH) | 49 x 24.4 x 44.685 | |
| Weight | NW/GW | 155 / 175 kgs |
| Packing Dimensions | mm (LxWxH) | 1372 x 686 x 762 |
| inch (LxWxH) | 54 x 27 x 30 | |
| No.of Machines Packed in 20" container | 20' | 36 sets/SKD |
