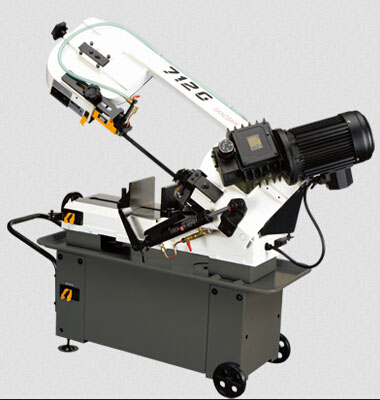

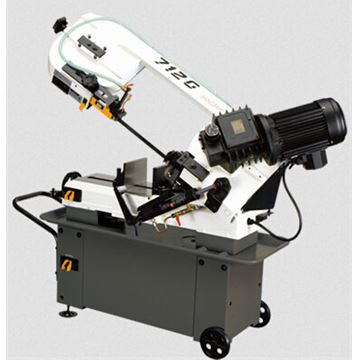

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
Gear drive system provides speed changing when saw blade is in unload running.
Cutting angle from 0 degree to 45 degree.
Adjustable blade guide for high accuracy and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With standard blade, chip brush and length stop set
Wheel kit for convenient moving to various work stations
| CUTTING CAPACITY | ||
| 0° |  | 178 mm ( 7" ) |
 | 178 x 305 mm ( 7" x 12" ) | |
| 45° | | 127 mm ( 5" ) |
| 120 x 125 mm ( 4 3/4" x 4 7/8" ) | |
| Item | Unit | BS712G |
| Main Motor | HP | 1 |
| Speed | Mt/min | 60HZ / 41-60-78 |
| 50HZ / 34-50-65 | ||
| Ft/min | 60HZ / 135-197-256 | |
| 50HZ / 112-164-213 | ||
| Saw Blade | mm (WxTxL) | 20 x 0.8 x 2362 W/Carbon |
| inch (WxTxL) | 0.8 x 0.0315 x 93 | |
| Machine Dimensions | mm (LxWxH) | 1285 x 500 x 1000 |
| inch (LxWxH) | 50.6 x 19.7 x 37 | |
| Weight | NW/GW | 150 / 185 kgs |
| Packing Dimensions | mm (LxWxH) | 1320 x 457 x 1117 |
| inch (LxWxH) | 52 x 18 x 44 | |
| No.of Machines Packed in 20" container | 20' | 40 sets |
