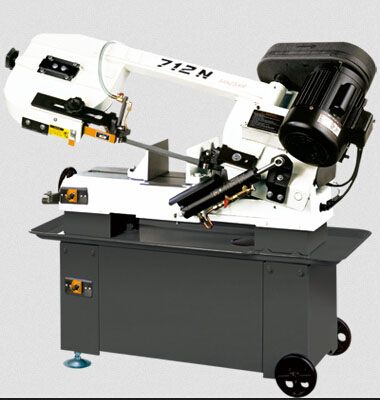

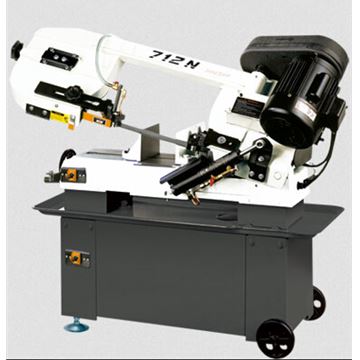

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
4 steps belt speeds allows different cutting speed.
Cutting angle from 0 degree to 45 degree.
Adjustable blade guide for high accuracy and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
Can changed from horizontal to vertical cutting
With standard blade, chip brush and length stop set
Wheel kit for convenient moving to various work stations
CUTTING CAPACITY | ||
0° | ![]() | 178 mm ( 7" ) |
![]() | 178 x 305 mm ( 7" x 12" ) | |
45° | ![]() | 127 mm ( 5" ) |
![]() | 120 x 125 mm ( 4 3/4" x 4 7/8" ) |
Item | Unit | BS712N |
Main Motor | HP | 3/4 |
Speed | Mt/min | 60HZ / 27-41-59-78 |
50HZ / 22-34-49-64 | ||
Ft/min | 60HZ / 90-135-195-255 | |
50HZ / 70-110-160-210 | ||
Saw Blade | mm (WxTxL) | 20 x 0.8 x 2362 W/Carbon |
inch (WxTxL) | 0.8 x 0.0315 x 93 | |
Machine Dimensions | mm (LxWxH) | 1235 x 430 x 955 |
inch (LxWxH) | 48.62 x 17 x 37.6 | |
Weight | NW/GW | 135 / 170 kgs |
Packing Dimensions | mm (LxWxH) | 1308 x 457 x 965 |
inch (LxWxH) | 51.5 x 18 x 38 | |
No.of Machines Packed in 20" container | 20' | 40 sets / SKD 60 sets |
