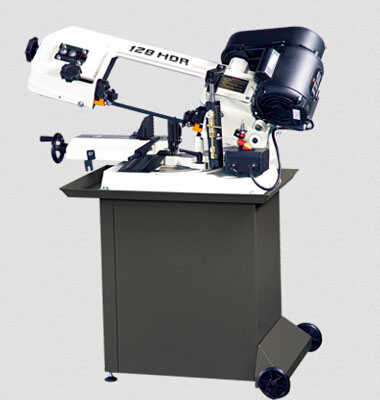

Casting structure assures machanical strength.
Fully adjustable hydraulic downfeed controls the rate of descent
Full blade cover provides more safety.
3 steps belt speeds allows different cutting speed.
Dual swivel cutting angle from -45 to +60 degrees.
Quick fixture lock vise for optional selection.
Stand jointed with water pan for collecting chip and water
Portable with casters.
With standard blade and length stop set
| CUTTING CAPACITY | ||
| 0° |  | 128mm ( 5" ) |
 | 128 x 150 mm ( 5" x 6" ) | |
| ±45° | | 95 mm ( 3 3/4" ) |
| 75 x 95 mm (2 15/16" x 3 3/4" ) | |
| 60° | | 44 mm ( 1 3/4" ) |
| 44 x56 mm ( 1 3/4" x 2 3/16" ) | |
| Item | Unit | BS128HDR |
| Main Motor | HP | 1/3 |
| Speed | Mt/min | 60HZ / 24-37-61 |
| 50HZ / 20-29-50 | ||
| Ft/min | 60HZ / 80-120-200 | |
| 50HZ / 65-95-165 | ||
| Saw Blade | mm (WxTxL) | 12.7 x 0.65 x 1635 W / carbon |
| inch (WxTxL) | 0.5 x 0.025 x 64.37 | |
| Machine Dimensions | mm (LxWxH) | 980 x 385 x 1060 |
| inch (LxWxH) | 39 x 15 x 42 | |
| Weight | NW/GW | 78/82 kgs |
| Packing Dimensions | mm (LxWxH) | 1041 x 445 x 559 |
| inch (LxWxH) | 41 x 17.5 x 22 | |
| No.of Machines Packed in 20" container | 20' | 108 sets |
