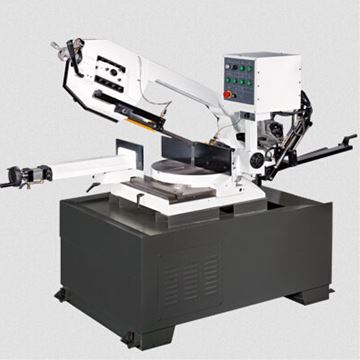

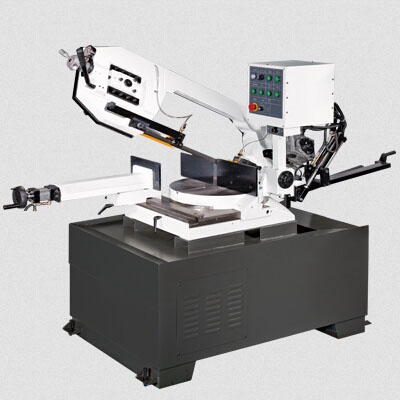

Cutting angle from 0 degree to +45/-60 degree.
Adjustable blade guide for high precision and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Hydraulic tension meter for optional selection.
High-efficiency variable speed system enhances excellent cutting operation.(BS420V/420VA/420VAA)
Semi-Auto with hydraulic pump and magnetic switch to control saw bow up down movement. (BS420VA/BS420VAA)
Semi-Auto hydraulic vise for auto clamping. (BS420VAA)
| CUTTING CAPACITY | ||
| 0° |  | 300 mm ( 11 7/8" ) |
 | 330 x 200 mm ( 13" x7 7/8" ) | |
 | 260 x 260 mm (10 1/4" x 10 1/4" ) | |
| 45° | | 260 mm ( 10 1/4 " ) |
| 270 x 200 mm ( 10 5/8" x 7 7/8" ) | |
| 254 x 254 mm (10" x 10" ) | |
| -45° | | 200mm ( 7 7/8" ) |
| 200 x 260 mm ( 7 7/8" x 10 1/4" ) | |
| 180 x 180 mm ( 7" x 7" ) | |
| 60° | | 180 mm ( 7" ) |
| 170 x 170 mm ( 6 11/16" x 4 11/16" ) | |
| 170 x 170 mm ( 6 11/16" x 5 11/16" ) | |
| Item | Unit | BS420 | BS420V / VA / VAA |
| Horse Power | HP | 2 (3-Phase) | 2 (3-Phase) |
| Feedrate | Mt/min | 60HZ / 48-96 | 60HZ / 30-95 |
| 50HZ / 40-80 | 50HZ / 25-78 | ||
| Ft/min | 60HZ / 157-315 | 60HZ / 98-312 | |
| 50HZ / 128-252 | 50HZ / 81-258 | ||
| Saw | mm (WxTxL) | 27 x 0.9 x 3320 | 27 x 0.9 x 3320 |
| inch (WxTxL) | 1.06 x 0.035 x 130.7 | 1.06 x 0.035 x 130.7 | |
| Machine Dimensions | mm (LxWxH) | 2245 x 850 x 1590 | 2245 x 850 x 1590 |
| inch (LxWxH) | 88 x 33 x 63 | 88 x 33 x 63 | |
| Weight | NW/GW | 460 / 540 kgs | 600 / 680 kgs |
| Packing Dimensions | mm (LxWxH) | 2295 x 914 x 1664 | 2295 x 914 x 1664 |
| inch (LxWxH) | 90.35 x 36 x 66 | 90.35 x 36 x 66 | |
| No.of Machines Packed in 20" container | 20' | 6 sets | 6 sets |
