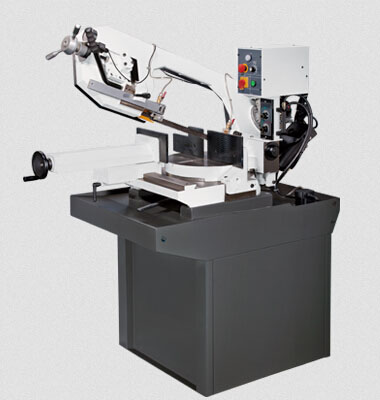

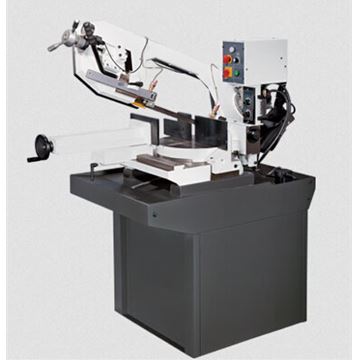

Cutting angle from 0 degree to +45/-60 degree.
Adjustable blade guide for high precision and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Hydraulic tension meter for optional selection.
Semi-Auto with hydraulic pump and magnetic switch to control saw bow up down movement. (BS320AA)
Semi-Auto hydraulic vise for auto clamping. (BS320AA)
High-efficiency variable speed system enhances excellent cutting operation.(BS320V/320VHB)
| CUTTING CAPACITY | ||
| 0° |  | 255 mm (10") |
 | 310 x 230mm (10 3/16" x 9 1/16") | |
 | 240 x 240mm (9 3/8" x 9 3/8") | |
| 45º | | 200 mm(7 3/8") |
| 120 x 180mm (4 3/4" x 7") | |
| 190 x 190mm (7 1/2" x 7 1/2") | |
| -45º | | 170mm(6 11/16") |
| 180 x 120mm (7" x 4 3/4") | |
| 160 x 160mm (6 1/4" x 6 1/4") | |
| 60º | | 115 mm(4 1/2") |
| 115 x115mm (4 1/2" x 4 1/2") | |
| 115 x 115mm (4 1/2" x 4 1/2") | |
| Item | Unit | BS320 | BS320V / 320VHB | BS320AA |
| Horse Power | HP | 1.5 (3-Phase) | 1.5 (3-Phase) | 1.5 (3-Phase) |
| Feedrate | Mt/min | 60HZ / 43-88 | 60HZ / 25-90 | 60HZ / 43-88 |
| 50HZ / 36-73 | 50HZ / 21-75 | 50HZ / 36-73 | ||
| Ft/min | 60HZ / 141-288 | 60HZ / 82-295 | 60HZ / 141-288 | |
| 50HZ / 118-239 | 50HZ / 68-244 | 50HZ / 118-239 | ||
| Saw | mm (WxTxL) | 27 x 0.9 x 2750 | 27 x 0.9 x 2750 | 27 x 0.9 x 2750 |
| inch (WxTxL) | 1.06 x 0.035 x 108.27 | 1.06 x 0.035 x 108.27 | 1.06 x 0.035 x 108.27 | |
| Machine Dimensions | mm (LxWxH) | 1400 x 700 x 1540 | 1400 x 700 x 1540 | 1400 x 700 x 1540 |
| inch (LxWxH) | 55 x 28 x 61 | 55 x 28 x 61 | 55 x 28 x 61 | |
| Weight | NW/GW | 315 / 345kgs | 315 / 345kgs | 390 / 440 kgs |
| Packing Dimensions | mm (LxWxH) | 1520 x 780 x 1015 | 1520 x 780 x 1015 | 1520 x 780 x 1015 |
| inch (LxWxH) | 60 x 31 x 40 | 60 x 31 x 40 | 60 x 31 x 40 | |
| No. of Machines Packed in 20” container | 20' | 20 sets | 20 sets | 20 sets |
