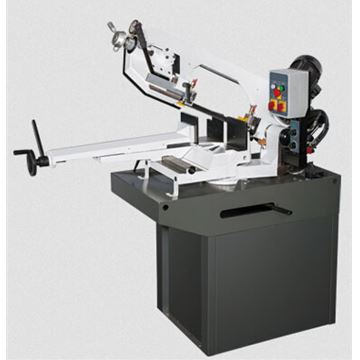

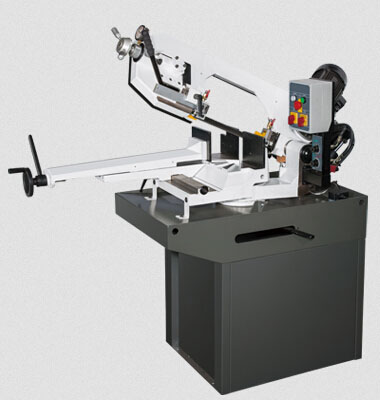

Cutting angle from 0 degree to +45/-60 degree
Adjustable blade guide for high precision and long blade life
Stand jointed with water pan for collecting chip and water
Coolant system for wet cutting.
With Bi-metal blade, chip brush and length stop set
Hydraulic tension meter for optional selection.
Semi-Auto with hydraulic pump and magnetic switch to control saw bow up down movement. BS-270DRAA)
Semi-Auto hydraulic vise for auto clamping. (BS-270DRAA)
High-efficiency variable speed system enhances excellent cutting operation.(BS-270DRV)
| CUTTING CAPACITY | ||
| 0° |  | 225 mm ( 8 3/4" ) |
 | 240 x 160 mm ( 9 3/8" x 6 1/4" ) | |
 | 200 x 200 mm ( 7 7/8" x 7 7/8" ) | |
| -45° | | 145 mm ( 5 3/4" ) |
| 145 x 100 mm ( 5 3/4" x 4" ) | |
| 140 x 140 mm ( 5 1/2" x 5 1/2" ) | |
| -60° | | 90 mm ( 3 1/2" ) |
| 85x 100 mm ( 3 3/8" x 4" ) | |
| 85x 85mm ( 3 3/8" x 3 3/8" ) | |
| 45° | | 145 mm ( 5 3/4" ) |
| 145 x 90 mm ( 5 3/4" x 3 1/2" ) | |
| 120 x 120 mm ( 4 3/4" x 4 3/4" ) | |
| Item | Unit | BF270DR | BF270DRAA | BF270DRV |
| Horse Power | HP | 1.5 (3-Phase) | ||
| Feedrate | Mt/min | 60HZ / 42, 84 | 60HZ / 42, 84 | 60HZ / 28-110 |
| Ft/min | 60HZ / 138, 276 | 60HZ / 138, 276 | 60HZ / 92-360 | |
| Saw | mm (WxTxL) | 27 x 0.9 x 2450 | ||
| inch (WxTxL) | 1.06 x 0.035 x 96.46 | |||
| Machine Dimensions | mm (LxWxH) | 1350 x 700 x 1326 | ||
| inch (LxWxH) | 53.15 x 27.56 x 52.2 | |||
| Weight | NW/GW | 320 / 355 kgs | 350 / 390 kgs | 320 / 355 kgs |
| Packing Dimensions | mm (LxWxH) | 1494 x 787 x 978 | ||
| inch (LxWxH) | 58.8 x 31 x 38.5 | |||
| No. of Machines Packed in 20” container | 20' | 48 sets / SKD | ||
