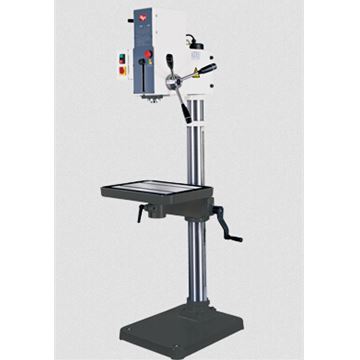

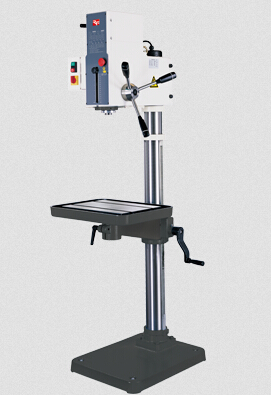

8 speed gearbox with big speed range 75-3140rpm.
Helical gears for smooth, quiet operation.
Right and left hand rotation allows tapping operations(optional tapping function).
MT-3 spindle taper with tool quick eject system.
150mm long spindle travel.
| Unit | BF205SF | ||
| Main Motor | HP | 1.5 (3-Phase) | |
| Speed | 2 Speed Motor (standard) | rpm | 60Hz 90~3580 50Hz 75~3140 |
| Drilling Capacity | mm | 32 | |
| Taper | MT3 | ||
| Stroke | mm | 107 | |
| Depth | mm | 284 | |
| Table Size | mm | 505 x 405 | |
| Column Diameter | mm | Ø100 | |
| Spindle Nose To Table | mm | 915 | |
| Spindle Nose To Base | mm | 1262 | |
| Quill Diameter | mm | Ø62 | |
| No. of Power Down feed | mm | 4 Step | |
| No. of T Slot | 2 | ||
| T Slot Size | mm | 16 x 26 | |
| Packing Dimensions | mm (LxWxH) | 1855 x 570 x 920 | |
| Machine Weight | NW/GW | 215 / 245 kgs 475 / 540 lbs | |
| No. of Machines Packed i n 20” container | 20' | 24 sets | |
