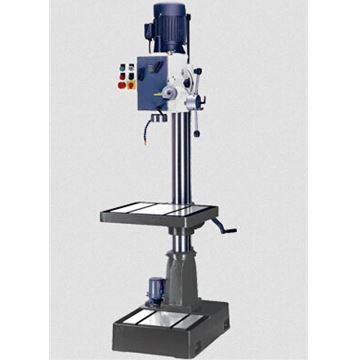

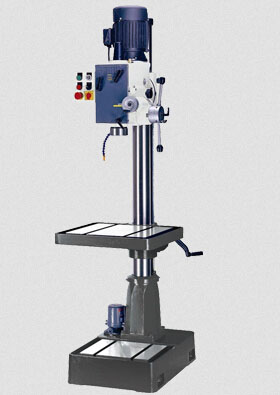

This feature packed machine is ready for your shop.
Comes with a coolant pump, powerdown feed,and easy selection speed controls.
What's more, the gear head can be repositioned along the column for expanded capacity when work is mounted on the base.
Desinged to withstand the most demanding jobs.
| Item | Unit | BS40N | |
| Main Motor | HP | 1.5 | |
| Speed | 1 Speed Motor (standard) | rpm | 60Hz 65~1550 50Hz 55~1260 (6 speeds) |
| 2 Speed Motor (optional) | rpm | 60Hz 65~3100 50Hz 55~2520 (12 speeds) | |
| Taper | MT4 | ||
| Stroke | mm | 107 | |
| Depth | mm | 260 | |
| Table Size | mm | 555 x 495 | |
| X Travel | mm | - | |
| Y Travel | mm | - | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 2 | ||
| Coolant Pump | mm | 1/8HP | |
| Packing Dimensions | mm (L x W x H) | 915 x 762 x 2083 | |
| Machine Weight | NW/GW | 310 / 340 kgs | |
| 685 / 750 lbs | |||
| No. of Machines Packed in 20" container | 20' | 18 sets | |
