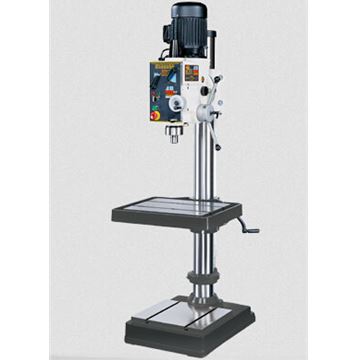

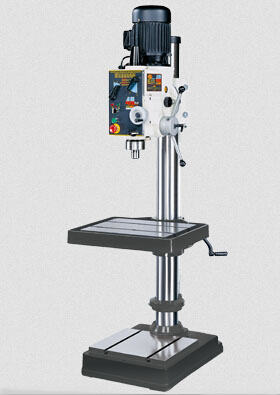

Heavy duty design allows a variety of precision drilling applications.
With powerdown feed.
Calibrated fine down feed built in.
Built in spindle lock. Head tilts left or right.
Easy accessible table raiser.
Large production square table and T-slotted base.
| Item | Unit | BS40 | |
| Main Motor | HP | 1 (3-Phase) / 1.5 (1-Phase) | |
| Speed | 1 Speed Motor (standard) | rpm | 60Hz 65~1550 50Hz 55~1260 (6 speeds) |
| 2 Speed Motor (optional) | rpm | 60Hz 65~3100 50Hz 55~2520 (12 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 107 | |
| Depth | mm | 260 | |
| Table Size | mm | 555x495(Square Table) | |
| X Travel | mm | - | |
| Y Travel | mm | - | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 2 | ||
| T Slot Size | mm | 16 x 26 | |
| Packing Dimensions | mm(L x W x H) | 830 x 740 x 1860 | |
| Machine Weight | NW/GW | 285 / 315 kgs | |
| 630 / 695 lbs | |||
| No. of Machines Packed in 20" container | 20' | 21 sets | |
