Products
Digital Readout of Spindle Travel.
Working Lamp.

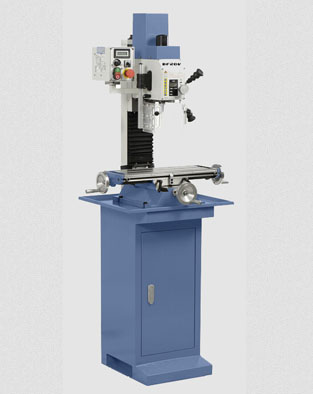

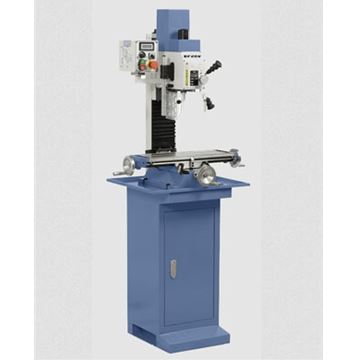

| Item | Unit | BF20 | |
| Drill Capacity In Steel | mm | 16 | |
| Face Mill Capacity Max. | mm | 50 | |
| End Mill Capacity Max. | mm | 16 | |
| Main Motor | KW | 0.5 | |
| Spindle Speed Stepless | rpm | 50-1125 / 100-2250 | |
| Spindle Taper | MT2 | ||
| Mill head tiltable | -90°to +90° | ||
| Stroke | mm | 50 | |
| Depth spindle to column | mm | 160 | |
| Table Size | mm | 500 x 180 | |
| X Travel | mm | 305 | |
| Y Travel | mm | 150 | |
| Distance spindle to table | mm | 275 | |
| No. of T Slot | 3 | ||
| T Slot Size | mm | 12 | |
| Packing Dimensions | mm (L x W x H) | 790 x 600 x 980 (w/o stand) | |
| Machine Weight | NW/GW | 110/ 120 kgs | |
Cabinet Stand
Coolant System
Worktable Power Feed
Worktable Lubrication Pump
RINO Machinery Industrial Co.,Ltd.
Tel: +86(0)514 8778 4693
Fax: +86(0)514 8778 4695
Add: 433# JiangyangRoad,Yangzhou,Jiangsu,China
