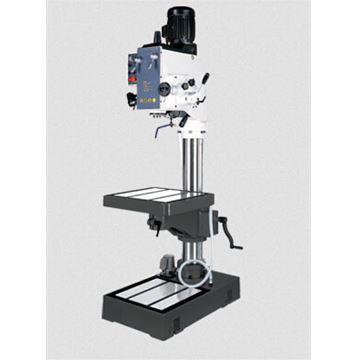

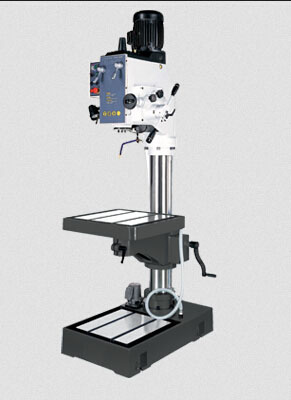

Heavy duty geared head drilling machine , 50mm drill capacity with 200mm of spindle tarvel,
50 rpm low speed for heavy drilling.
Cross work table tilts to +/-90º and rotates 360º(RF-500C), coolant base system,
Forward and reverse spindle switch with high and low speeds.
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 50mm (2") |
| Face Mill | 100mm (4") | |
| End Mill | 25mm (1") | |
| Tapping | 33mm (15/16") | |
| In Light Alloy | 50mm (11/2") | |
| Item | Unit | BS500C |
| Main Motor | HP | 4 (3-Phase) |
| Speed | rpm | 60Hz 60~1810, 50Hz 50~1510 (6 speeds) |
| Taper | MT4 | |
| Stroke | mm | 200 |
| Depth | mm | 340 |
| Table Size | mm | 820 x 240 (Swivel) |
| X Travel | mm | 460 |
| Y Travel | mm | 280 |
| Column Diameter | mm | Ø180 |
| No. of T Slot | 4 | |
| T Slot Size | mm | 16 x 26 |
| Coolant Pump | 1 / 8HP | |
| Packing Dimensions | mm (L x W x H) | 1130 x 1120 x 2210 |
| Machine Weight | NW/GW | 750 / 800 kgs |
| 1650 / 1760 lbs | ||
| No. of Machines Packed in 20" container | 20' | 10 sets (motor dismounted) |
Worktable Power Feed
Worktable Lubrication Pump
