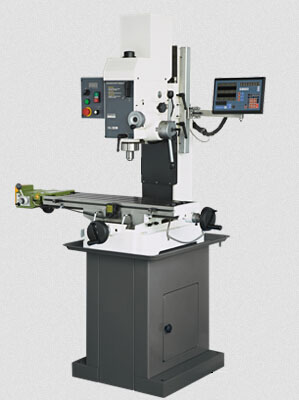

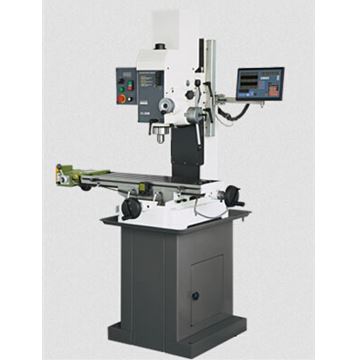

Geared Head Milling/drilling Machine with VARIABLE Speed.
Head tilts left/right for increased versatility.
Full power to the cutting tool through 6 speed geared head.
Square column with dovetail ways on BF45.
Tilting head 90° left and 30° right..
Powerdown feed and DRO system installed for more precise working.
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 40mm (11/2") |
| Face Mill | 100mm (4") | |
| End Mill | 20mm (3/4") | |
| Tapping | 20mm (3/4") | |
| In Light Alloy | 40mm (11/2") | |
| Item | Unit | BF45VN | |
| Main Motor | HP | 1.5 (3-Phase) | |
| Speed | rpm | 0-2500 | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 107 | |
| Depth | mm | 255 | |
| Table Size | mm | 820 × 240 | |
| X Travel | mm | 520 | |
| Y Travel | mm | 210 | |
| Column Diameter | mm | - | |
| No. of T Slot | 4 | ||
| T Slot Size | mm | 16 × 26 | |
| Coolant Pump | mm | - | |
| Packing Dimensions | mm(L x W x H) | 915 × 737 × 1194 | |
| Machine Weight | NW/GW | 330 / 360 kgs | |
| 725 / 795 lbs | |||
| No. of Machines Packed in 20" container | 20' | 18 sets | |
Cabinet Stand
Coolant System
Working Lamp
Worktable Power Feed
2 - Speeds Motor
Digital Readout of Spindle Travel
Digital Readout of 3-Axis
Worktable Lubrication Pump
