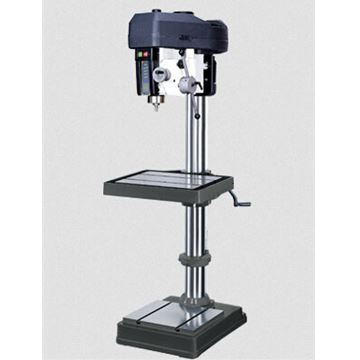

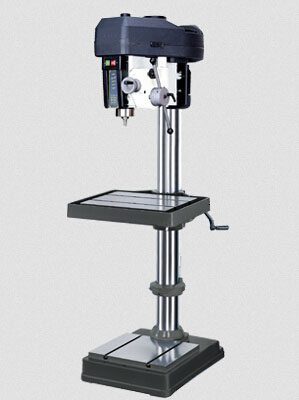

Floor type milling/drilling machine with fine powerdown feed.
Can also select swivel vise table for more performance.
S model for square table.
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 32mm (11/4") |
| Face Mill | 76mm (3") | |
| End Mill | 20mm (3/4") | |
| Tapping | 16mm (5/8") | |
| In Light Alloy | 32mm (11/4") | |
| Item | Unit | BF30NHS | |
| Main Motor | HP | 1.5 | |
| Speed | 1 Speed Motor (standard) | rpm | 60Hz 150~3000, 50Hz 125~2500 (12 speeds) |
| 2 Speed Motor (optional) | rpm | 60Hz 75~3000, 50Hz 62~2500 (24 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 107 | |
| Depth | mm | 205 | |
| Table Size | mm | 555 x 495 | |
| X Travel | mm | 380 | |
| Y Travel | mm | 180 | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 2 | ||
| T Slot Size | mm | 16 x 26 | |
| Packing Dimensions | mm (L x W x H) | 890 x 740 x1740 | |
| Machine Weight | NW/GW | 285 / 315 kgs | |
| 630 / 695 lbs | |||
| No. of Machines Packed in 20" container | 20' | 18sets | |
Coolant System
Working Lamp
2 - Speeds Motor
