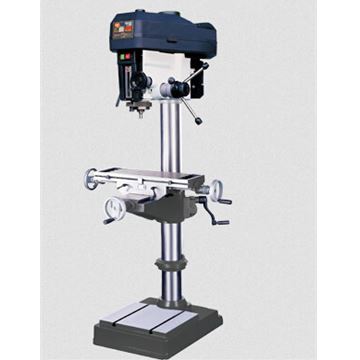

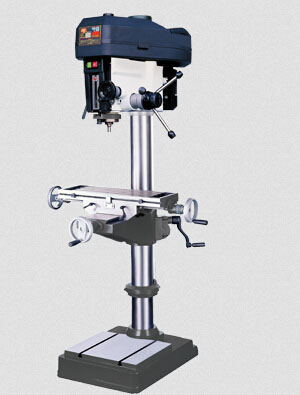

BF30NHC-Belt Head Drill&Mill Machine Art:8202010

Floor Type Drill&Mill Machine Belt Head Drill&Mill Machine Spindle Power Down Feed NHC = Cross Table + Spindle Power Down Feed 0.12 – 0.18 – 0.25mm per/rev.

FEATURES
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES

Floor type milling/drilling machine with fine powerdown feed.
Can also select swivel vise table for more performance.
C model for cross table.

WORKING CAPACITY
In Mild Steel (Optional)	Drilling	32mm (1^1/4")
	Face Mill	76mm (3")
	End Mill	20mm (3/4")
	Tapping	16mm (5/8")
In Light Alloy		32mm (1^1/4")

Item		Unit	BS30NHC
Main Motor		HP	1.5
Speed	1 Speed Motor (standard)	rpm	60Hz 150~3000, 50Hz 125~2500 (12 speeds)
	2 Speed Motor (optional)	rpm	60Hz 75~3000, 50Hz 62~2500 (24 speeds)
Taper			MT3 or R8
Stroke		mm	107
Depth		mm	205
Table Size		mm	585 x 190
X Travel		mm	380
Y Travel		mm	180
Column Diameter		mm	Ø115
No. of T Slot			4
T Slot Size		mm	14 x 24
Packing Dimensions		mm(L x W x H)	830 x 740 x1860
Machine Weight		NW/GW	295 / 325 kgs
			650 / 715 lbs
No. of Machines Packed in 20" container		20'	21 sets

Coolant System

Working Lamp

2 - Speeds Motor

Worktable Power Feed

Worktable Lubrication Pump
