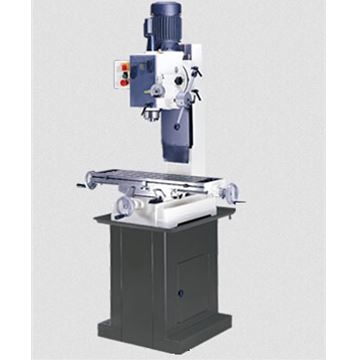

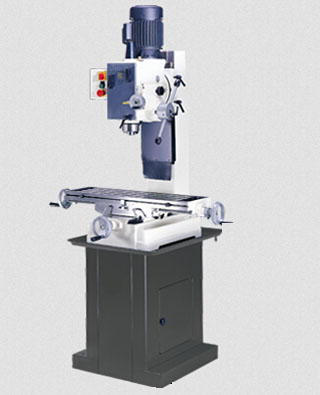

Geared Head Milling/drilling machine.
Head tilts left/right for increased versatility.
Full power to the cutting tool through 6 speed geared head.
Square column with dovetail ways on BF45.
Tilting head 90° left and 30° right.
Power down feed for BF45N model.
DRO system for optional selection
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 40mm (11/2") |
| Face Mill | 100mm (4") | |
| End Mill | 20mm (3/4") | |
| Tapping | 20mm (3/4") | |
| In Light Alloy | 40mm (11/2") | |
| Item | Unit | BF45N | |
| Main Motor | HP | 1 (3-Phase) / 1.5 (1-Phase) | |
| Speed | 1 Speed Motor (standard) | rpm | 60Hz 65~1550 50Hz 55~1260 (6 speeds) |
2 Speed Motor (optional) | rpm | 60Hz 65~3100 50Hz 55~2520 (12 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 107 | |
| Depth | mm | 255 | |
| Table Size | mm | 820 × 240 | |
| X Travel | mm | 520 | |
| Y Travel | mm | 210 | |
| Column Diameter | mm | - | |
| No. of T Slot | 4 | ||
| Coolant Pump | mm | - | |
| Packing Dimensions | mm(L x W x H) | 915 × 737 × 1194 | |
| Machine Weight | NW/GW | 330 / 360 kgs | |
| 725 / 795 lbs | |||
| No. of Machines Packed in 20" container | 20' | 18 sets | |
Cabinet Stand
Coolant System
Working Lamp
Worktable Power Feed
2 - Speeds Motor
Digital Readout of Spindle Travel
Digital Readout of 3-Axis
Worktable Lubrication Pump
