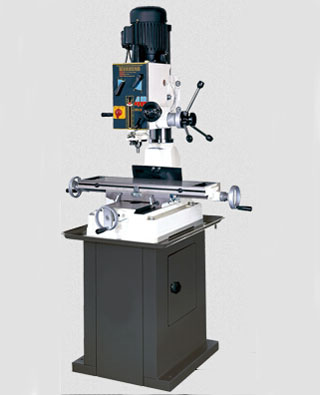

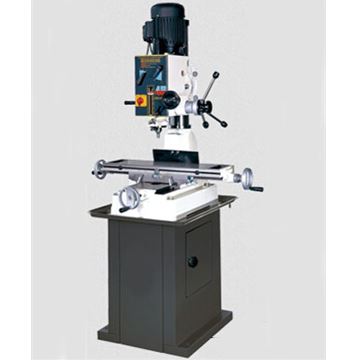

Geared head Milling/Drilling Machine.
Rapid spindle speed changes thru quick-select gear shift levers-no belts to tool with.
Fast feed spindle/quill handles and a fine feed handwheel dial for wide range control.
Tilting head 90° left and right.
Forward/reverse switch.
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 40mm (11/2") |
| Face Mill | 100mm (4") | |
| End Mill | 20mm (3/4") | |
| Tapping | 20mm (3/4") | |
| In Light Alloy | 40mm (11/2") | |
| Item | Unit | BF40 | |
| Main Motor | HP | 1 (3-Phase) / 1.5 (1-Phase) | |
| Speed | 1 Speed Motor(standard) | rpm | 60Hz 65~1550, 50Hz 55~1260(6 speeds) |
| 2 Speed Motor(optional) | rpm | 60Hz 65~3100, 50Hz 55~2520(12 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 130 | |
| Depth | mm | 260 | |
| Table Size | mm | 730 x 210 | |
| X Travel | mm | 460 | |
| Y Travel | mm | 230 | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 4 | ||
| T Slot Size | mm | 16 x 26 | |
| Packing Dimensions | mm(L x W x H) | 810 x 740 x 1150 | |
| Machine Weight | NW/GW | 270 / 300 kgs | |
| 595 / 660 lbs | |||
| No. of Machines Packed in 20" container | 20' | 42 sets (w/o stand) | |
Cabinet Stand
Coolant System
Working Lamp
Worktable Power Feed
2 - Speeds Motor
Digital Readout of Spindle Travel
Worktable Lubrication Pump
