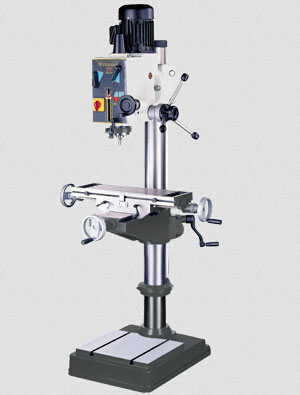

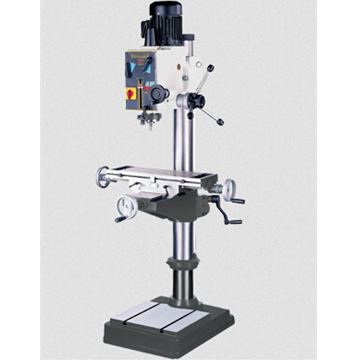

Spindle is equipped with four heavy-duty taperred roller bearings.
Forward/Reverse switch.
Easy to read internal depth gauge.
C modle for Cross table
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 40mm (11/2") |
| Face Mill | 100mm (4") | |
| End Mill | 20mm (3/4") | |
| Tapping | 20mm (3/4") | |
| In Light Alloy | 40mm (11/2") | |
| Item | Unit | BF40HC | |
| Main Motor | HP | 1 (3-Phase) / 1.5 (1-Phase) | |
| Speed | 1 Speed Motor (standard) | rpm | 60Hz 65~1550 50Hz 55~1260 (6 speeds) |
| 2 Speed Motor (optional) | rpm | 60Hz 65~3100 50Hz 55~2520 (12 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 130 | |
| Depth | mm | 260 | |
| Table Size | mm | 585 x 190(Cross Table) | |
| X Travel | mm | 380 | |
| Y Travel | mm | 180 | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 4 | ||
| T Slot Size | mm | 14 x 24 | |
| Packing Dimensions | mm(L x W x H) | 830 x 740 x 1860 | |
| Machine Weight | NW/GW | 280 / 310 kgs | |
| 615 / 685 lbs | |||
No. of Machines Packed in 20" container | 20' | 21 sets | |
Coolant System
Working Lamp
Worktable Power Feed
2 - Speeds Motor
Digital Readout of Spindle Travel
Worktable Lubrication Pump
