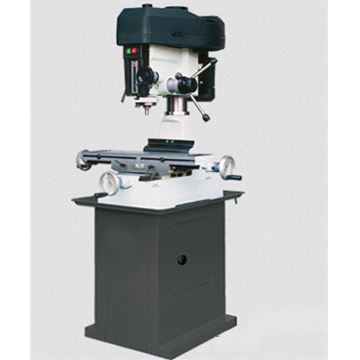

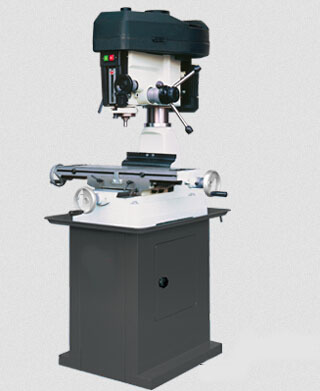

This fine quality machine offers maximum versatility.
Can be used for milling, drilling, routing, boring, cutting keyways and many other routine light-duty operations.
Ideally suited for home or machine and maintenance shops. Rigid construction.
Heavy cast column.
Massive head casting.
Head swivel 360°.
Heavy duty stand for optional selection.
| WORKING CAPACITY | ||
| In Mild Steel (Optional) | Drilling | 32mm (11/4") |
| Face Mill | 76mm (3") | |
| End Mill | 20mm (3/4") | |
| Tapping | 16mm (5/8") | |
| In Light Alloy | 32mm (11/4") | |
| Item | Unit | BF30 | |
| Main Motor | HP | 1.5 | |
| Speed | 1 Speed Motor (standard) | rpm | 60HZ / 150-3000 50HZ / 125-2500 (12 speeds) |
| 2 Speed Motor (optional) | rpm | 60HZ / 75-3000 50HZ / 62-2500 (24 speeds) | |
| Taper | MT3 or R8 | ||
| Stroke | mm | 130 | |
| Depth | mm | 205 | |
| Table Size | mm | 730 x 210 | |
| X Travel | mm | 460 | |
| Y Travel | mm | 190 | |
| Column Diameter | mm | Ø115 | |
| No. of T Slot | 4 | ||
| T Slot Size | mm | 16 x 26 | |
| Packing Dimensions | mm (L x W x H) | 810 x 740 x 1150 (w/o stand) | |
| Machine Weight | NW/GW | 230 / 255 kgs | |
| 505 / 560 lbs | |||
| No. of Machines Packed in 20" container | 20' | 42 sets (w / o stand) | |
Cabinet Stand
Coolant System
Working Lamp
2 - Speeds Motor
Worktable Power Feed
Worktable Lubrication Pump
