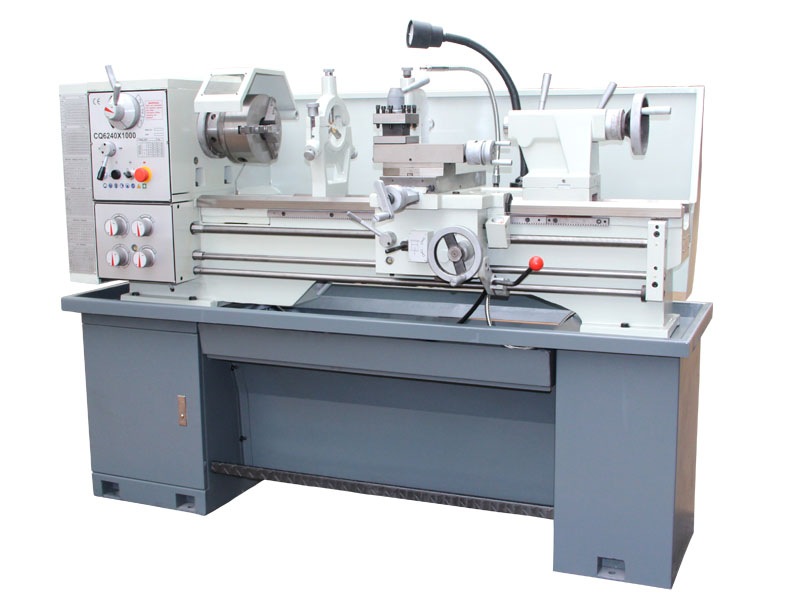

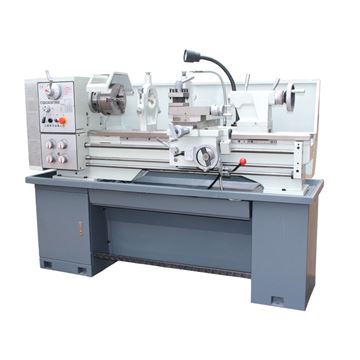

Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Easy operating gear box has various feed sand thread cutting function
| Swing Over Bed | 400 mm |
| Swing in Gap | 520mm |
| Swing Cross Slide | 250mm |
| Center Height | 200mm |
| Distance Between Center | 1250mm |
| Bed Width | 218mm |
| Spindle Nose | D1-5 Camlock |
| Spindle Bore | 52mm |
| Quick Change Tool Holder Seat Height | 20mm |
| Spindle Stepless Speeds Range | 65-2000RPM |
| Machine Voltage | 400V/50HZ |
| Spindle Motor | 2.2KW / 3HP |
| Longitudinal feed in the range of | 0.052 - 1.291 mm/rev |
| Cross feeds in the range of | 0.011 - 0.276 mm/rev |
| Step/Pitch - Metric in the range of | 32 /0.4-7mm mm/rev |
| Step/Pitch - Inch in the range of | 36 (4-60TPI) |
| Travel top slide | 80 mm |
| Travel cross slide | 250mm |
| Tailstock Taper | MT4 |
| Tailstock sleeve travel | 110mm |
| Length x width x height | 1900×770×1300 mm |
| NW/GW | 800/890KG |
| Package Size | 2000×890×1545mm |
3 jaw chuck 200mm
Fixed center MT4/MT6
Quick change tool holder
Change gear kit
Operating tools
