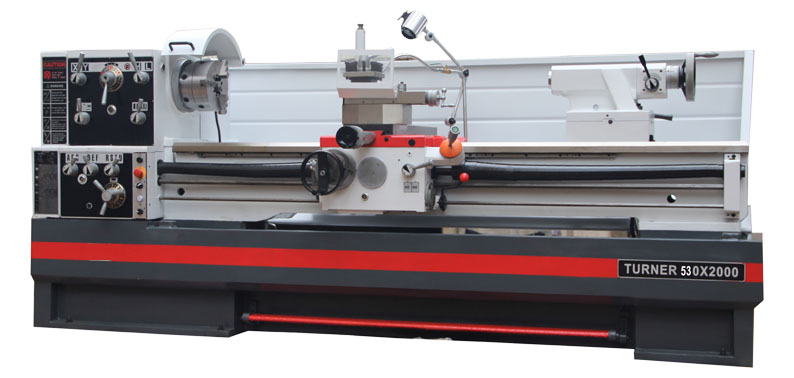

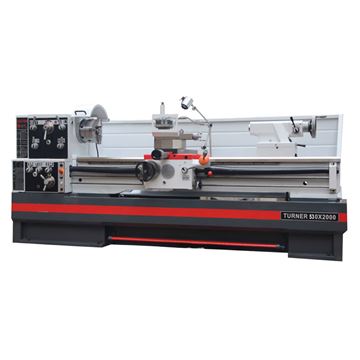

Whole or segregate foot stand
Removeable bridge allows processing of workpieces with big diameter
Logical, clearly designed and easy-to-use speed and feed settings
Including 4 adjustable cams for automatic shut-down of the apron
| Swing Over Bed | 530 mm |
| Swing in Gap | 765mm |
| Swing Cross Slide | 329mm |
| Center Height | 265mm |
| Distance Between Center | 1515mm |
| Bed Width | 400mm |
| Spindle Taper | ME90 |
| Spindle Nose | D1-8 Camlock |
| Spindle Bore | 82mm |
| Quick Change Tool Holder Seat Height | 25mm |
| Spindle Stepless Speeds Range | 20-1600RPM |
| Machine Voltage | 400V/50HZ |
| Spindle Motor | 7.5KW |
| Longitudinal feed in the range of | 0.01- 0.286 mm/rev |
| Cross feeds in the range of | 0.01 - 0.286 mm/rev |
| Step/Pitch - Metric in the range of | 24 /0.25-7mm mm/rev |
| Step/Pitch - Inch in the range of | 50 (4-112TPI) |
| Travel top slide | 200 mm |
| Travel cross slide | 320mm |
| Tailstock Taper | MT5 |
| Tailstock sleeve travel | 180mm |
| Overall Dimension (L X W X H) | 114"×38"×52" |
| Machine NW /GW | 2750/3090KG |
| Package Size | 118"×43"×71" |
·Standard accessories
·Fixed center MT5/ME90
·Quick change tool holder
·Flace Plate 450mm
·Change gear kit
·Operating tools
·Special accessories
·4 Jaw chucka and
·Face plates
·Driving plate
·Steady rest
·Follow rest
·Quick change tool post
·Taper turning attachment
