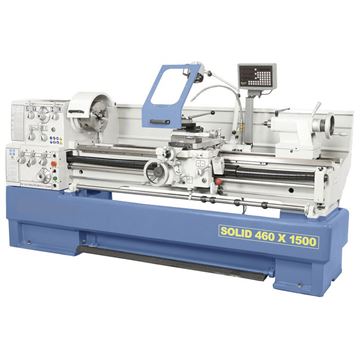

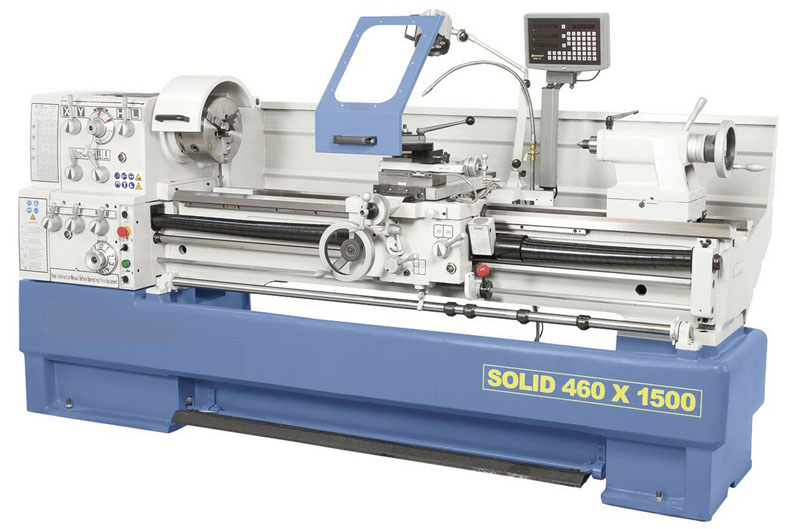

Whole foot stand
| Swing Over Bed | 460 mm |
| Swing in Gap | 690mm |
| Swing Cross Slide | 274mm |
| Center Height | 230mm |
| Distance Between Center | 1000mm |
| Bed Width | 300mm |
| Spindle Taper | MT6 |
| Spindle Nose | D1-8 Camlock |
| Spindle Bore | 82mm |
| Quick Change Tool Holder Seat Height | 25mm |
| Spindle Stepless Speeds Range | 25-1700RPM |
| Machine Voltage | 400V/50HZ |
| Spindle Motor | 5.5KW |
| Longitudinal feed in the range of | 0.031 - 1.700 mm/rev |
| Cross feeds in the range of | 0.014 - 0.784 mm/rev |
| Step/Pitch - Metric in the range of | 41 /0.1-14mm mm/rev |
| Step/Pitch - Inch in the range of | 60 (2-112TPI) |
| Travel top slide | 130 mm |
| Travel cross slide | 290mm |
| Tailstock Taper | MT4 |
| Tailstock sleeve travel | 130mm |
| Overall Dimension (L X W X H) | 220×108×137cm |
| NW /GW | 1645/1910KG |
| Package Size | 225X112X162 cm |
·Standard accessories
·3 Jaw chucka and
·Sleeve and center
·Oil gun
·Special accessories
·4 Jaw chucka and
·Face plates
·Driving plate
·Steady rest
·Follow rest
·Quick change tool post
·Taper turning attachment
