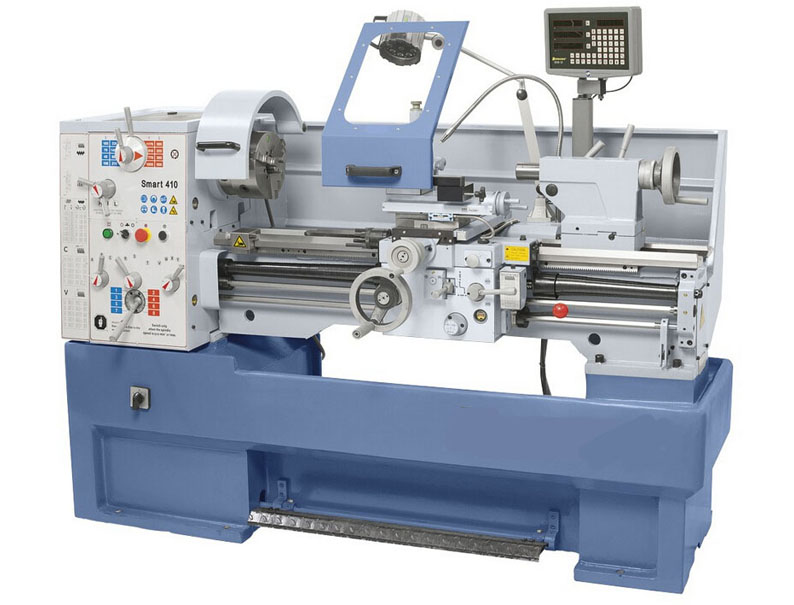

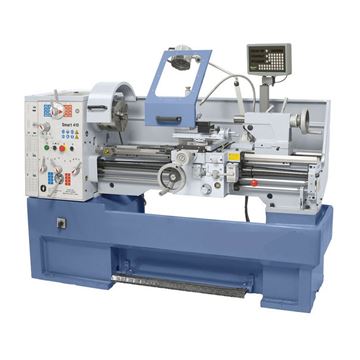

Whole foot stand
Feed box construction design patent
Appearance design patent
| Swing Over Bed | 410 mm |
| Swing in Gap | 580mm |
| Swing Cross Slide | 255mm |
| Center Height | 205mm |
| Distance Between Center | 1000mm |
| Bed Width | 250mm |
| Spindle Taper | MT6 |
| Spindle Nose | D1-6 Camlock |
| Spindle Bore | 52mm |
| Quick Change Tool Holder Seat Height | 20mm |
| Spindle Stepless Speeds Range | 45-1800RPM |
| Machine Voltage | 400V/50HZ |
| Spindle Motor | 2.2KW / 3.3KW |
| Longitudinal feed in the range of | 0.050 - 1.700 mm/rev |
| Cross feeds in the range of | 0.025 - 0.850 mm/rev |
| Step/Pitch - Metric in the range of | 42 /0.2-14mm mm/rev |
| Step/Pitch - Inch in the range of | 45 (2-72TPI) |
| Travel top slide | 140 mm |
| Travel cross slide | 210mm |
| Tailstock Taper | MT4 |
| Tailstock sleeve travel | 120mm |
| Overall Dimension (L X W X H) | 2030X1000X1450 mm |
| Machine Weight NW/GW | 1160/1350KG |
| Package Size | 2060X1100X1640mm |
3 jaw chuck 200mm
Fixed center MT4/MT6
Quick change tool holder
Face Plate 350mm
Change gear kit
Operating tools
