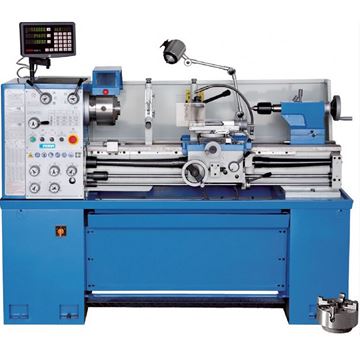

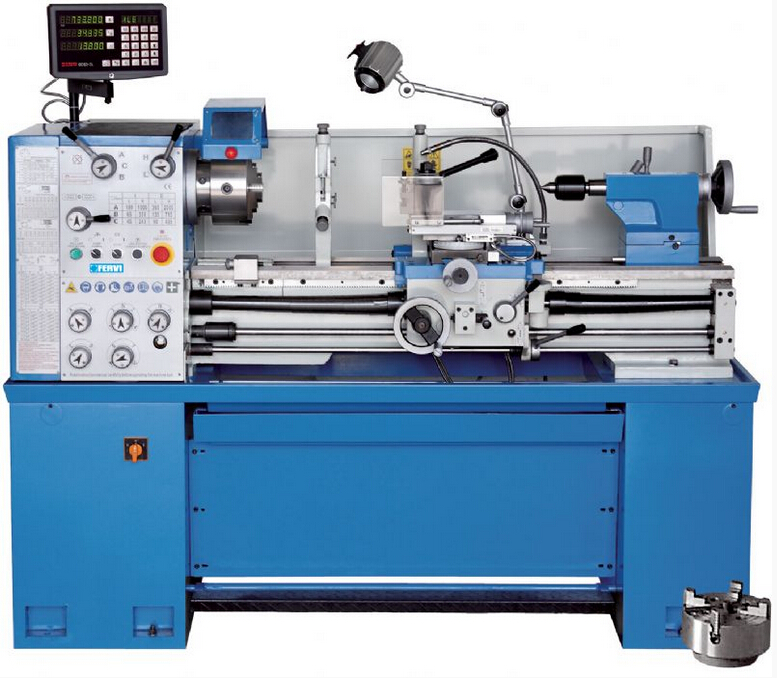

Profi 400-Gear Head Lathe with Digiatal Readouts ART:8201023
The Profi 400 is a solidly constructed universal lathe, offering a wide range of applications. Features of this model include the large turning diameter of 400 mm and the 52 mm spindle bore. Its construction (design, performance, feeds etc.) convers all needs for training purposes, as well as for tool shops and repair shops.
Centers height
200mm
Max swing over the bed
400mm
Max swing over the cross slide258mm
Max swing over the gap
550mm
Distance between centers1000m
Spindle taper
MT6
Spindle bore55mm
Spindle nose Camlock
Camlock D1-5
Spindle speeds(6)70-2000rpm
Bed width
210mm

Longitudinal feeds

0.006-2.78mm/rev
Cross feeds
0.010-0.720mm/rev

Metric threads

0.8-14mm

Inch threads

2-28TPI
Cutting tool max section25x25mm
Tailstock taper
MT4
Tailstock sleeve diameter
45mm
Travel of tailstock sleeve
120mm
Three-phase motor1.5/2.4KW/400V/50HZ
Coolant power
60W
NW/GW850/900KG

Over dimensions

1980 x 750 x 1580mm

Package size
2000 x 760 x 1600mm

3+3 jaw self centering chuck Ø 200 mm

4 Reversible indipendent jaws chuck Ø 200 mm

Reduction sleeve MT 6/4

Face plate Ø 320 mm

Follow rest

Steady rest

Dead center MT 4

Live center MT 4

Foot brake

Thread dial

Leadscrew hood

Chuck safeguard

Full length splash guard

T0AE quick change tool post

Working lamp

Cooling system
